SKM-Type Air-Floating Vibration Isolation Platform

The SKM-Type Air-Floating Vibration Isolation Platform is a cutting-edge solution for ultra-low frequency vibration isolation. Designed for high-precision industries, it uses advanced membrane air suspension technology and dual air chamber structure to achieve vertical and horizontal isolation under 2.5Hz. With automatic leveling and high repeat positioning accuracy, this platform provides a reliable and stable environment for sensitive instruments and operations.

What are the core parameters of the SKM-Type platform?

The KM-Type platform is built for precision, stability, and efficiency. Its core technical parameters include:

Ultra-low frequency isolation:
Utilizes membrane-type air suspension isolators combined with a dual air chamber system, achieving <2.5Hz vibration isolation in both vertical and horizontal directions.
Auto-leveling function:
Automatically adapts to load changes within 2 seconds, with repeatable positioning accuracy up to ±0.01mm, ensuring stability during operational shifts.
Marble surface platform:
Constructed with Grade 00 flatness, suitable for high-precision applications. Vibration control rating reaches VC-C level, meeting the demands of top-tier scientific environments.

These core parameters make it ideal for installations requiring both precision positioning and vibration-free stability.

Where can the SKM-Type Air-Floating Platform be applied?

This platform is designed for a wide range of vibration-sensitive applications. Its use cases include:

Optical experiments and laser systems
High-precision electronics manufacturing
Aerospace component calibration
Metallurgical testing environments
Precision chemical processes
Non-destructive testing (NDT)
Isolation for high-accuracy measuring and analytical instruments

Whether in a laboratory or cleanroom, the KM-Type platform provides the vibration isolation foundation that critical equipment depends on.

What are the key features and functional advantages?

The KM-Type platform is not just a passive support—it’s an intelligent vibration control system:

Active air-floating isolation: Membrane isolators respond dynamically to vibrations and stabilize the platform.
Smart auto-leveling: Ensures constant surface alignment even under load changes.
High customization potential: Supports multi-point layouts (four-point, six-point, eight-point) based on equipment weight and precision needs.
No electrical power needed: Entirely pneumatic, minimizing interference and improving reliability.

Its combination of precision isolation, ease of integration, and industrial-grade durability makes it a preferred choice for modern high-tech applications.

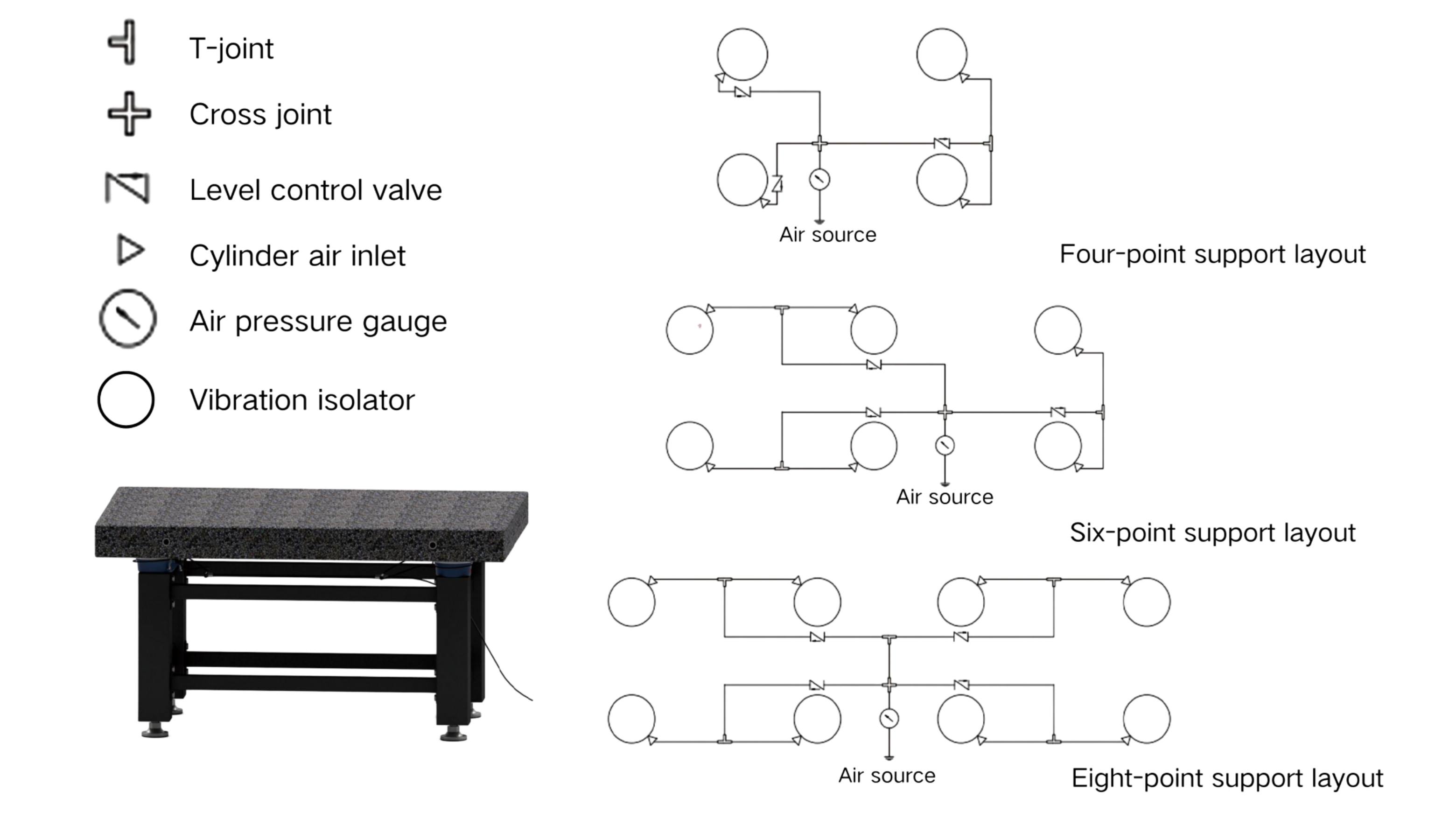

Schematic diagram of automatic leveling system layout
