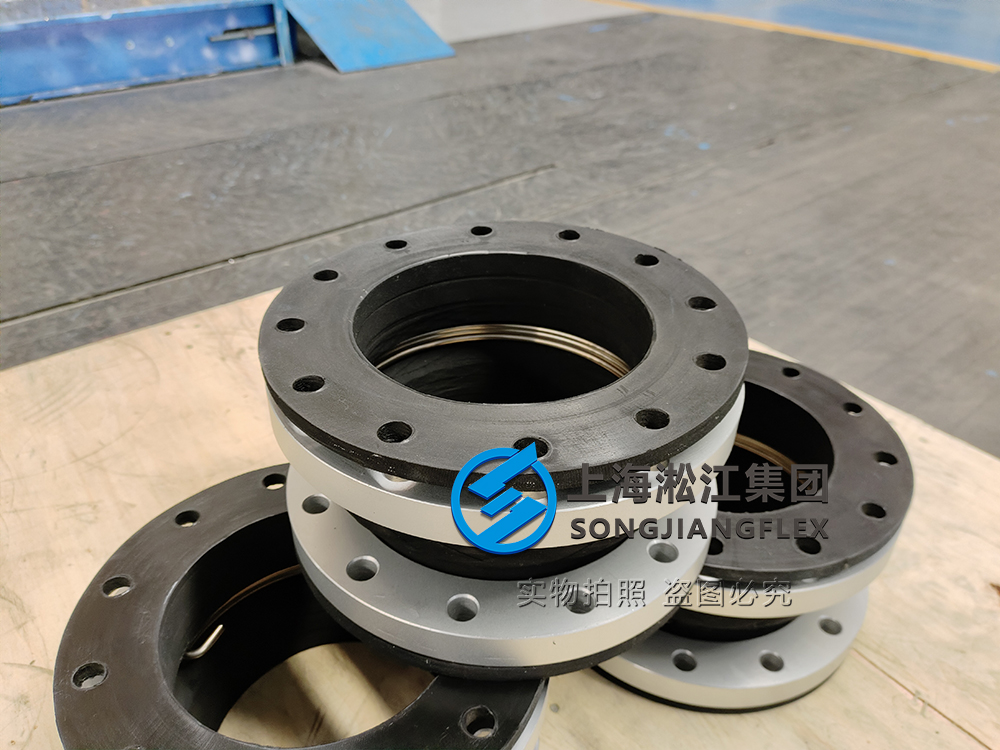

In modern industrial piping systems, vibration, thermal expansion, and pressure fluctuations can impact pipeline safety and performance. To meet special operational requirements, we recently customized a batch of Aluminum Flanged Rubber Expansion Joints with a built-in vacuum ring, ensuring safe and stable operation even under negative pressure or vacuum conditions.

Features of Aluminum Flanged Rubber Expansion Joints

The combination of high-elasticity rubber and lightweight aluminum flanges provides several advantages:

1. Vibration and Displacement Compensation
   Effectively absorbs pipeline vibration, noise, and thermal expansion/contraction movement.

2. Lightweight and Easy Installation
   Aluminum flanges are 40–60% lighter than traditional steel or stainless steel, reducing support loads and simplifying handling and installation.

3. Excellent Corrosion Resistance
   Naturally corrosion-resistant aluminum is suitable for humid, marine, or chemical environments, reducing maintenance costs.

4. High Strength with Negative Pressure Adaptability
   The built-in vacuum ring prevents collapse under negative pressure, maintaining seal integrity and enhancing safety and service life.

5. Good Thermal Conductivity
   Aluminum flanges dissipate heat efficiently, making them suitable for hot media pipelines and HVAC systems, protecting rubber materials from localized overheating.

Customization and Specifications

We offer flexible solutions to meet diverse customer requirements:

• Pipe Diameters: 1 inch to 12 inches, with standard sizes in stock for quick delivery; custom sizes available.

• Rubber Materials: EPDM, NBR, FKM (Viton), suitable for different media.

• Flange Materials: Aluminum, carbon steel, stainless steel, selected according to operating conditions.

• Vacuum Ring Design: Customized thickness and shape based on negative pressure levels.

All products undergo rigorous pressure testing and quality inspections to meet international standards and client specifications.

Typical Applications of Aluminum Flanged Expansion Joints

1. Central Air Conditioning and HVAC Systems
   Lightweight and corrosion-resistant, ideal for high-rise buildings and commercial HVAC systems, reducing vibration and noise transmission.

2. Industrial and Chemical Pipelines
   Suitable for corrosive media such as acids, alkalis, and saltwater, providing long service life and stable operation.

3. Marine and Offshore Pipelines
   Corrosion-resistant aluminum flanges withstand marine environments, vibration, and fluctuating pressures, perfect for ship cooling, HVAC, and firefighting pipelines.

4. Vacuum or Negative Pressure Systems
   Built-in vacuum ring ensures the pipeline does not collapse under negative pressure, maintaining system safety and reliability.

Conclusion

Our custom Aluminum Flanged Rubber Expansion Joints with built-in vacuum ring combine the vibration-absorbing properties of high-elasticity rubber, the lightweight and corrosion-resistant benefits of aluminum flanges, and the structural reliability under negative pressure.

They are ideal for HVAC systems, industrial piping, chemical pipelines, marine applications, and specialized negative pressure systems, ensuring safety, reducing noise and vibration, and extending pipeline service life.
