In precision applications, even the slightest vibration can cause measurement errors, processing deviations, or imaging noise. The JBS Type Air Bellow Vibration Isolator offers outstanding vibration damping performance and is widely recognized across high-end industries for its reliability and adaptability.
What Makes the JBS Air Spring Isolator So Effective?

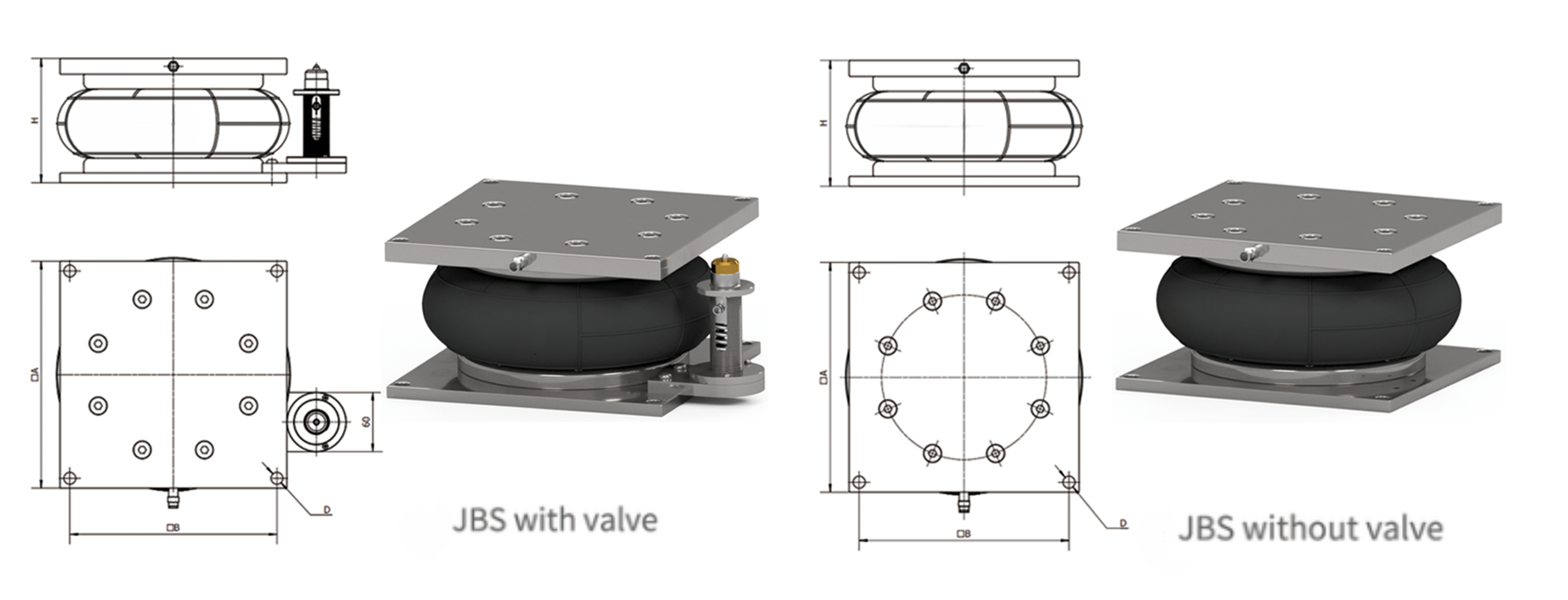

The JBS series uses air bellows as its core damping element, and when paired with a high-precision leveling valve, the working height is stabilized at 116 ± 5 mm. Key features include:
-
Excellent vibration isolation performance
-
Built-in damper quickly suppresses equipment oscillations
-
Adjustable height via precision leveling valve
-
Integrated lower limit stopper prevents over-compression
-
Cleanroom compatibility for semiconductor and optical environments
-
Optional valve support system available for automated control
Which Equipment Is the JBS Isolator Suitable For?
The JBS air spring isolator is ideal for a wide range of high-precision instruments. Key applications include:
-
Precision Measurement Instruments
-
Laser Interferometers
-
Atomic Force Microscopes (AFM)
-
-
Optical Inspection Systems
-
Automated Optical Inspection (AOI) Machines
-
Confocal Microscopes
-
-
Magnetic Resonance Imaging (MRI) Equipment
-
Medical MRI Scanners
-
High-field Research MRI Systems
-
-
High-Precision Laser Cutting Platforms
-
Laser Micromachining Systems
-
UV Laser Cutting Machines
-
-
High-Speed Machining Centers
-
5-Axis CNC Machining Centers
-
High-Speed Milling Machines
-
-
Aerospace & Military Equipment
-
Satellite Assembly Vibration Platforms
-
Gyroscope Calibration Systems
-
Technical Specifications of the JBS Series
-
Vertical natural frequency: 3–5 Hz (load-dependent)
-
Horizontal natural frequency: 3–5 Hz (stiffness-dependent)
-
Settling time: < 1 second
-
Leveling precision: ±0.05 mm (with Casby high-precision valve)
-
Vibration isolation class: VC-B grade
-
Fatigue life: >1,000,000 cycles (Certified, GB/T13934-2006 compliant)
-
Operating temperature: -57°C to +60°C
System configuration requires at least 3 air springs (based on three-point surface principle), and when extended with multiple units, three leveling valves must be maintained to ensure stability.
Conclusion
Whether it’s a precision metrology lab, a laser machining cleanroom, or a medical imaging facility, the JBS Air Bellow Vibration Isolator delivers the stability, precision, and performance that modern high-tech equipment demands. It’s the ideal choice for environments where vibration control is mission-critical.
