A reliable piping system must handle vibration, thermal expansion, misalignment, and continuous dynamic movement. One of the most effective and cost-efficient solutions for these challenges is the Universal Rubber Expansion Joint.
In this complete guide, you will learn what a universal rubber expansion joint is, how it works, why it improves system reliability, and how to select the right model for your application.
What Is a Universal Rubber Expansion Joint?

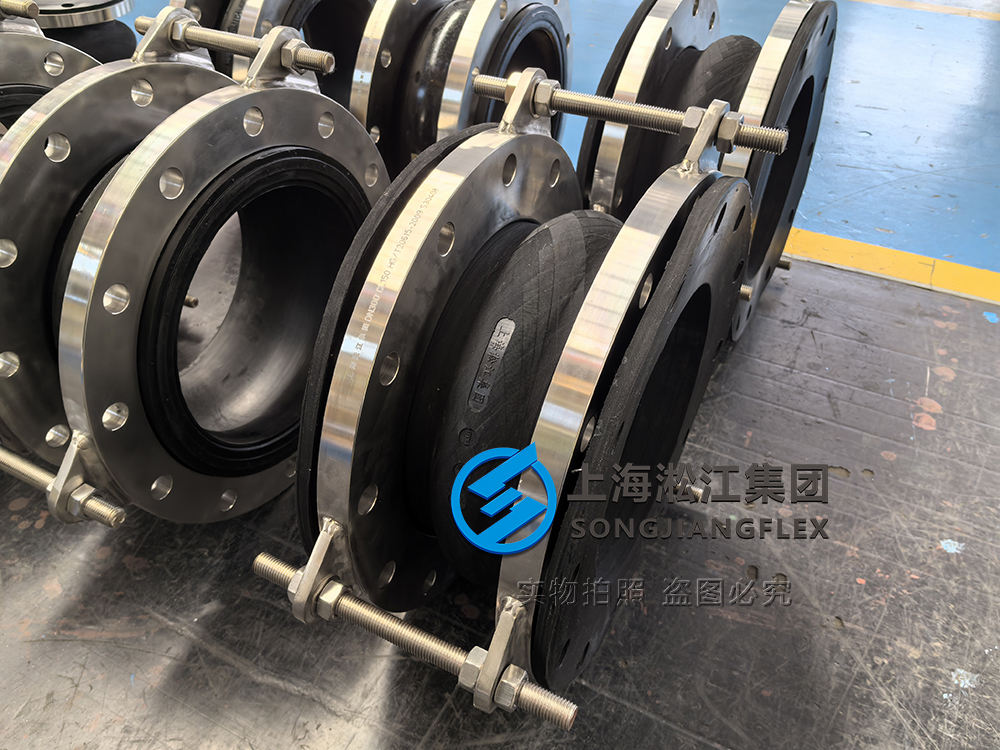

A Universal Rubber Expansion Joint is a flexible connector designed with two or more wide molded arches. It absorbs axial, lateral, and angular movements, reduces vibration, lowers noise, and protects pipes and equipment from stress.
It is called “universal” because it can be used in a wide range of industries:
-
HVAC and chilled water systems
-
Water and wastewater treatment
-
Pump and compressor outlets
-
Industrial process piping
-
Chemical and energy plants
-
Fire protection systems
These joints are made from synthetic elastomers, reinforced fabric layers, and optional metal reinforcements, giving them excellent flexibility and durability.
Why Your System Needs a Universal Rubber Expansion Joint
1. Absorbs Thermal Expansion & Contraction
Pipes expand and contract due to temperature changes. Without a flexible connector, this can cause cracks, leaks, or anchor failures.
Universal rubber expansion joints safely absorb these movements and maintain system integrity.
2. Reduces Vibration from Pumps and Compressors
Equipment such as pumps, chillers, and compressors generate vibration that can damage nearby pipes.
The universal rubber expansion joint acts as a vibration isolator, significantly reducing transmitted vibration and extending equipment life.
3. Limits Noise and Improves System Comfort
Rubber expansion joints naturally dampen noise, making them ideal for:
-
Residential buildings
-
Commercial HVAC rooms
-
Hotel mechanical floors
-
Hospitals and schools
They help create a quieter and more comfortable environment.
4. Compensates for Misalignment
Perfect pipe alignment is difficult to achieve in real engineering conditions.
Universal expansion joints compensate for installation tolerances, preventing stress buildup and reducing installation time.
5. Protects Anchors and Supports
Internal pressure creates thrust loads at the arches of the expansion joint.
Because universal rubber expansion joints have a low spring rate, they reduce these forces and protect anchor points from excessive stress.
6. Handles Large Movements Better Than Single-Arch Joints
With multiple arches, universal joints can absorb greater movement in all directions.
This makes them ideal for:
-
Long pipeline runs
-
Systems with high thermal expansion
-
Areas with ground settlement
7. Offers a Cost-Effective Alternative to Metal Expansion Joints
Metal bellows are expensive and require strict installation conditions.
Universal rubber expansion joints provide similar benefits at a lower cost, with easier installation and longer fatigue life.
How Multi-Arch Design Improves Performance
Multi-arch expansion joints provide:
-
Higher flexibility
-
Lower stiffness
-
Better movement absorption
-
Longer cycle life
Each arch works independently to absorb stress, making the joint more stable and reliable.
When Should You Use a Universal Rubber Expansion Joint?
They are essential in systems where:
-
High vibration is present
-
Thermal expansion is significant
-
Pipe misalignment occurs
-
Noise reduction is necessary
-
Anchor loads need to be reduced
-
Long service life is required
Applications include chilled water systems, fire protection networks, industrial pipelines, and pump discharge lines.
How to Choose the Right Universal Rubber Expansion Joint
Before selecting a model, consider the following factors:
1. Pressure Rating (PN)
Match the operating pressure of your system.
2. Temperature & Media Compatibility
Choose the right rubber (EPDM, NBR, NR, etc.) based on fluid or chemical exposure.
3. Number of Arches
More arches = more movement + lower stiffness.
4. Flange Standards
Available in: ANSI, DIN, JIS, GB, etc.
5. Required Movement
Check the allowable axial, lateral, and angular movement for your pipeline.
If you need assistance, we can recommend the correct model based on your system data.
Conclusion: A Smart Upgrade for Modern Piping Systems
A Universal Rubber Expansion Joint provides:
-
Better vibration control
-
Effective noise reduction
-
Superior flexibility
-
Long-term protection against stress
-
Cost savings on maintenance and system repairs
For engineers, designers, and maintenance teams, it is one of the most valuable components in a modern piping system.
If you want the strongest performance and maximum reliability, a universal rubber expansion joint is the right choice.
