Feeling too much vibration in your HVAC or equipment system?
Uncontrolled vibration damages machinery, reduces comfort, and leads to high maintenance. A spring vibration isolator solves this by effectively isolating the vibration source.
A spring vibration isolator is a device that uses steel springs, rubber dampers, and metal mountings to reduce transmitted vibration from mechanical equipment. It’s widely used in HVAC systems, generators, chillers, and industrial machines to extend equipment life and improve stability.
Let’s dive into how these isolators work and why they’re vital across different applications.
What is a spring vibration isolator?
Spring vibration isolators use coiled springs combined with dampening materials like rubber or neoprene to absorb and reduce vibration from equipment such as air handling units or generators.
Spring isolators are mechanical devices designed to limit the transmission of vibration through structural elements, using spring deflection and damping to achieve this.
For example, premium spring isolators with built-in dampers are highly reliable in applications such as data centers and precision labs, where sensitive instruments require absolute vibration control.
How does a spring isolator work?
Spring isolators work by converting mechanical vibration into spring motion, then dissipating that motion via controlled spring deflection and rubber damping.
When installed correctly, the isolator compresses slightly under equipment weight and absorbs motion across vertical and lateral directions through spring and damper components.
The spring isolator deflection (typically 25mm–50mm) directly affects performance — higher deflection provides better isolation at lower frequencies, which is key for chillers and large motors.
What types of spring vibration isolators are available?

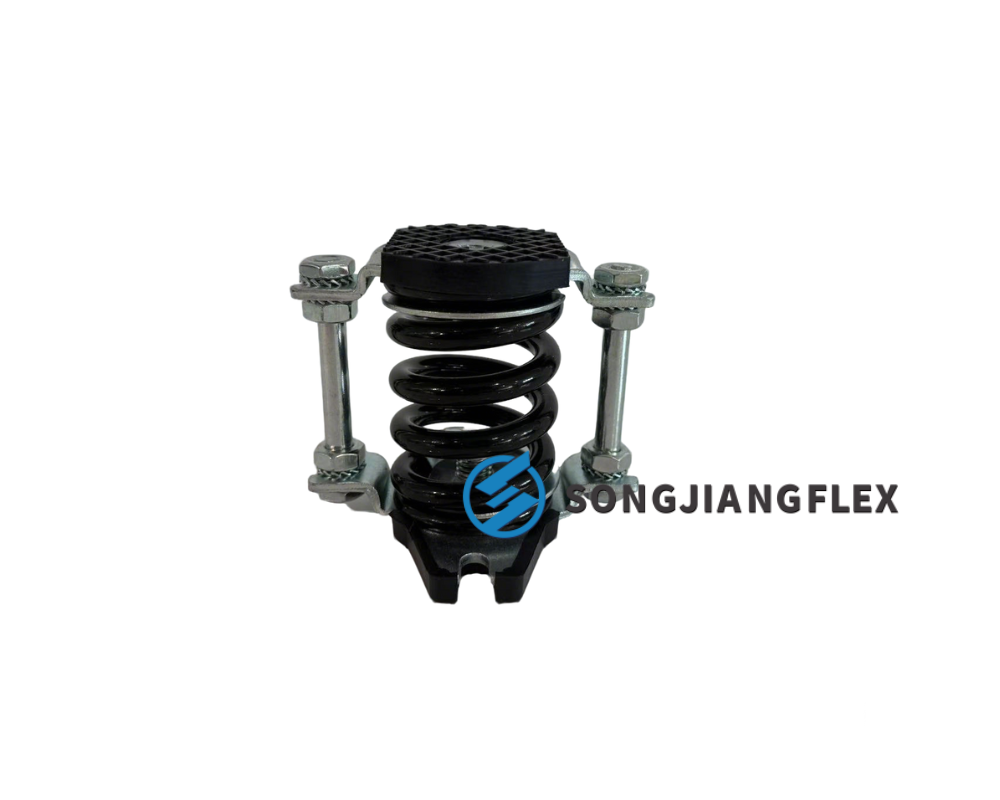

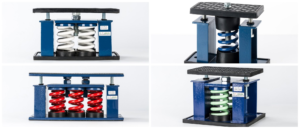

Depending on installation needs, spring isolators come in types like free-standing, floor-mounted, hanging spring isolators, and spring mount hangers.
Free-standing and floor-mounted isolators support heavy-duty equipment from the ground, while hanging types suspend systems like ducts or piping.
In suspended HVAC ducts, vibration isolation hangers with built-in springs and neoprene elements are ideal. For semi trucks, spring mounts are applied under sleeper compartments to reduce road vibration.

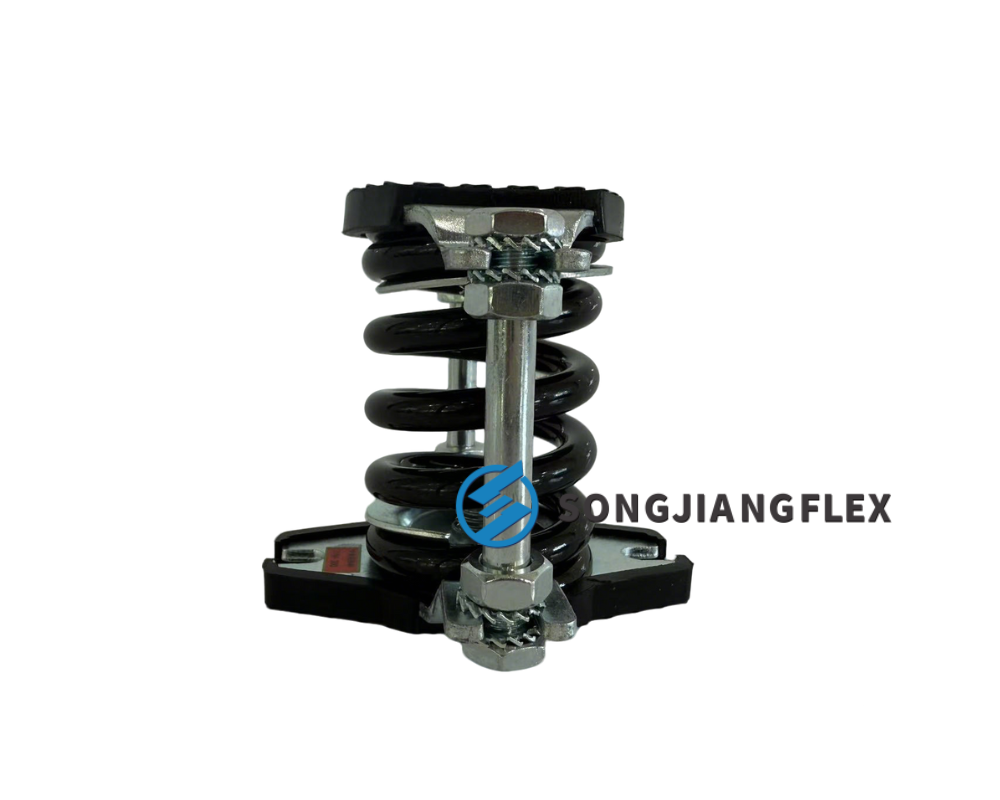

In industrial and transportation settings, spring mounts are widely used to absorb dynamic vibration. These are base-mounted units placed under equipment or vehicles to prevent shock transmission. Spring mounts differ slightly from traditional isolators by focusing more on base anchoring and compact installation.
For instance, a spring mount semi truck suspension utilizes heavy-duty springs to isolate the sleeper cab from road shocks, significantly improving driver comfort during long hauls.
How to install spring isolators?
Proper installation ensures the isolator performs to spec. It involves setting pre-compression, aligning mounting bolts, and checking spring deflection.
Refer to the spring isolator installation manual for step-by-step setup, especially when dealing with large or sensitive equipment like generators.
Spring isolators for generators must be leveled precisely to prevent vibration amplification. Using a floor mount vibration isolator spring setup helps manage dynamic loads effectively.
What is the color code on spring isolators?
Color codes identify load ratings for easy selection and troubleshooting during maintenance.
Each spring color represents a specific deflection and load capacity. Check the manufacturer’s spring isolator color code chart before installation.
For example, a red-coded spring might handle 300 kgf with 25mm deflection, suitable for small compressors, while blue might be 800 kgf — ideal for larger chillers.
Why use spring isolators in HVAC systems?
HVAC equipment generates low-frequency vibration. Spring isolators with proper deflection help reduce transmitted vibration to building structures.
Spring vibration isolators HVAC are essential for chillers, AHUs, pumps, and fans, providing improved comfort, noise control, and equipment longevity.
Installing spring isolators HVAC along with hanging spring isolators can protect both rooftop and basement mechanical rooms from vibration interference.
Are there heavy-duty spring isolators?
Yes. For industrial applications like turbines or commercial generators, heavy-duty vibration isolators are built with reinforced steel springs and rugged bases.
These isolators handle dynamic loads over 5000 kg, ideal for seismic and critical infrastructure applications.
When equipment weight and force variation is high, heavy-duty spring isolators or adjustable free-standing isolators are recommended, especially where safety standards are strict.
Summary
Spring vibration isolators are essential components for controlling mechanical noise and vibration. Proper type, installation, and deflection selection make all the difference.
