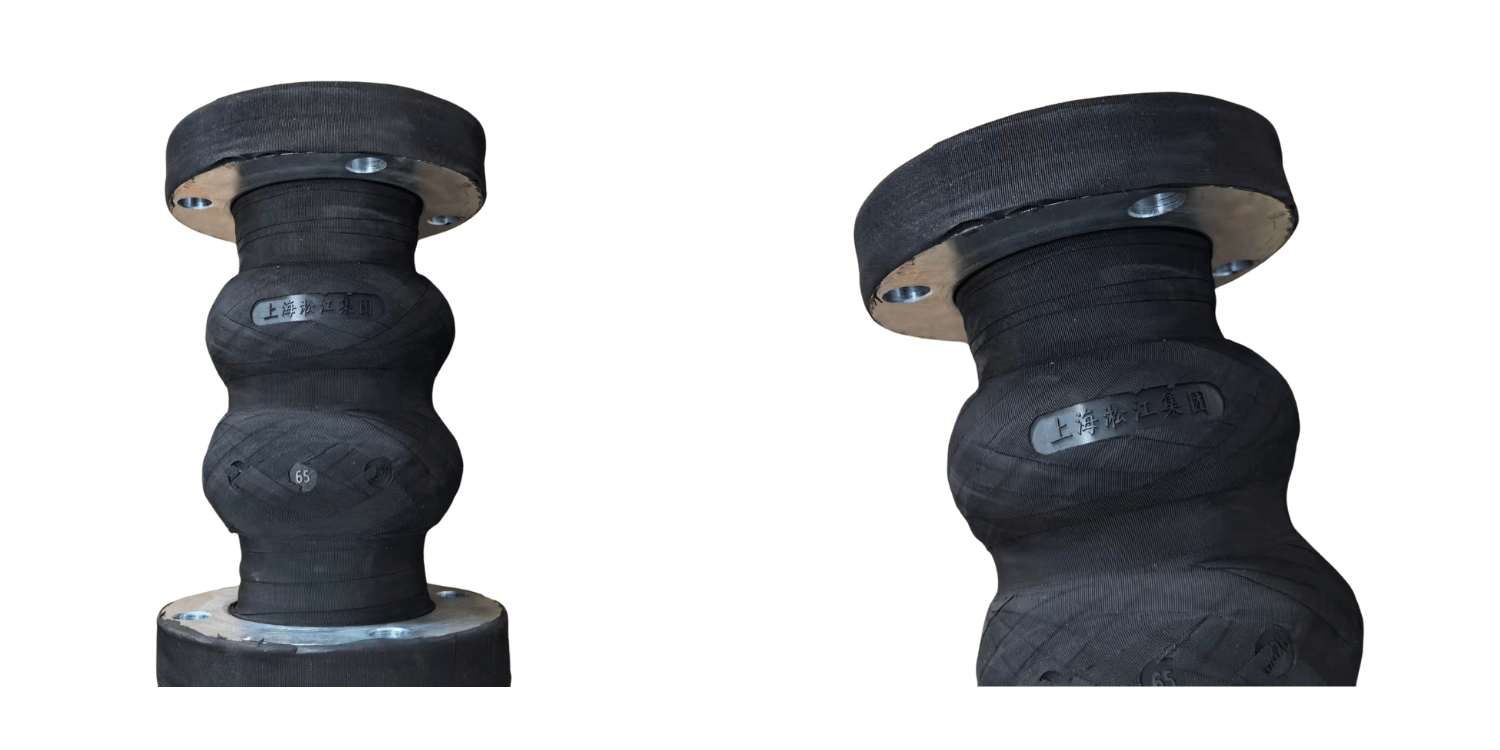

Customized Flexible Rubber Hose
Customized Flexible Rubber Hose is designed to absorb vibration, reduce noise, and compensate for pipeline misalignment in various industrial systems. Made from high-quality elastomers and reinforced with multi-layer fabric or steel wire, it ensures excellent flexibility, pressure resistance, and long service life.
This product is widely used in industries such as HVAC, water supply, petrochemical, power plants, and mechanical equipment systems.
What is a Flexible Rubber Hose?
A flexible rubber hose is a pipe connector made of elastomer materials designed to absorb vibration, reduce noise, and allow movement in piping systems. It helps prevent damage caused by thermal expansion, mechanical movement, or equipment vibration.
What is the Difference Between Rubber Hose and Metal Hose?
- Rubber Hose: Better for vibration absorption and noise reduction
- Metal Hose: Better for high temperature and extreme pressure
Choosing between them depends on your working conditions.
How to Choose the Right Flexible Rubber Hose?
When selecting a hose, consider:
- Working pressure and temperature
- Medium (water, oil, chemical, etc.)
- Required movement (axial, lateral, angular)
- Installation space
- Connection type
Key Features
- Custom Design Available
Size, length, flange type, and materials can be fully customized based on your project requirements. - Excellent Flexibility
Effectively absorbs vibration and movement, protecting pipelines and equipment. - High Pressure & Temperature Resistance
Suitable for demanding working conditions. - Strong Reinforcement Structure
Multi-layer cord fabric or steel wire ensures durability and safety. - Corrosion & Aging Resistance
Available in EPDM, NBR, Neoprene, and other materials for different media.
Technical Specifications
- Diameter Range: DN25 – DN3000
- Working Pressure: PN6 – PN25
- Temperature Range: -20°C to 120°C (customizable)
- Material Options: EPDM, NBR, NR, PTFE lined
- Connection Type: Flanged, threaded, or customized
Applications
Customized flexible rubber hoses are widely used in:
- HVAC systems (chillers, cooling towers)
- Water supply and drainage systems
- Pump and compressor connections
- Petrochemical pipelines
- Power plants and thermal systems
- Industrial machinery
Why Choose Our Flexible Rubber Hose?
- 30+ years of manufacturing experience
- Strict quality control and testing
- Fast delivery for urgent orders
- Support for small batch customization
- Exported to Europe, USA, Middle East, and Southeast Asia
Flexible Rubber Hose Structure Diagram
Contact Us for Custom Solutions
We can provide customized design and manufacturing of full flange rubber expansion joints and flexible rubber hoses based on your specific working conditions. Our solutions are tailored to meet demanding requirements in terms of size, medium compatibility, temperature, and movement (axial, lateral, and angular displacement).
We offer customization options including single arch, double arch, and triple arch designs, ensuring optimal performance for different applications. A wide range of rubber materials is available, with commonly used options such as NBR, EPDM, and CR, to suit various operating environments.
If you have drawings or technical requirements, feel free to contact us for a fast and professional quotation:
📧 Email: [email protected]
📱 WhatsApp / Tel: +86 13032112360
We look forward to supporting your projects with reliable and customized solutions.
